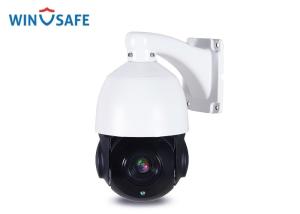

| Model No. | WS-BT54F-N |
| DSP | HI3516C | HI3516D | HI3516D |
| Sensor | 1/3" Sony IMX323 | 1/3" AR0521 | 1/3" Panasonic34229 |
| Pixel | 200W | 500W | 200W |
| Resolution Ratio | 1920*1080@25fps / 1920*1080@30fps | 2592*1944@15fps / 2592*1944@22fps | 1920*1080@25fps / 1920*1080@30fps |
| Lens | f=4.7mm-94mm | f=4.7mm-94mm | f=4.6mm-165mm |
| Optical Zoom | 20X | 20X | 36X |
| Digital Zoom | 10X |
| Min. illumination | Color: 0.1Lux B/W: 0.01Lux / IR ON:0 Lux |
| D/N | IR-CUT |
| AGC | Auto/manual |
| WB | Auto/manual/indoor/outdoor |
| S/N Ratio | ≥50dB |
| Rotation Range | Pan: 0°~360° Tilt: 0°~93° |
| Horizontal Rotation Speed | 0.02°/s-45°/s |
| Tilt Rotation Speed | 0.02°/s-30°/s |
| Auto Flip | Horizontal 180°, Vertical 93° |
| A-B Scan | User programmable |
| A-B Scan Speed | 1-9 levels setting available |
| Communications Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P |
| Software Control | IE, CMS, Management Platform |
| Network Security | HTTPS,802.1X,IP ADDRESS FILTERING |
| Quick Command | PELCO instruction set |
| Mobile View(optional) | Support android/ios smart phone |
| APP | Hisee |
| Video Compression | H.264/H.265/M-JPEG |
| Audio compression | G711,PCM |
| Audio Frequency | Optional |
| Dwell Preset | 1-60s interval available |
| Preset Points | 220 |
| Go to Preset Speed | 1-64 levels available |
| PWR On Action | Memory/Tour 1/360° scan/A-B scan/Preset 1-8/None |
| Park Time | 1-60mins available |
| Guard Tours | 3 groups |
| Guard Points | Max.16 points, dwell time user selectable |
| Operation menu | English etc |
| Pan and Tilt position display | Support |
| Auto Control IR LED | PWM |
| LEDs | Array 42Mil, 6 pieces IR LED |
| Lightning Protection | Transient voltage 6000V |
| IR distance | Up to 60 meters |
| Support ambient light detection | IR illumination on 1-9 grades selectable; |
| Operating temperature | Outdoor: -40°~ +60° |
| Operating Humidity | ≤95% Non Condensing |
| Power | DC12V 3A |
| Consumption | ≤15W |
| Ingress Protection | IP66 |

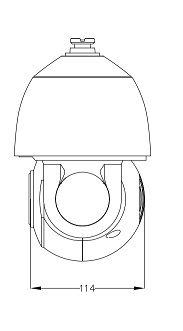

| Packing Case Size | 185mm x 185mm x 285mm/pcs(L*W*H) / 757mm x 385mm x 305mm/8pcs(L*W*H) |
| Weight | N.W 2.51KG/G.W 4.5KG |
